Ironwood Upcut Saw - 14"

Model: CUT14

$5,990.00

Blade Side

Left (CUT14L)

Right (CUT14R)

Quantity:

Save this product for later

Ironwood Upcut Saw - 14"

Product Details

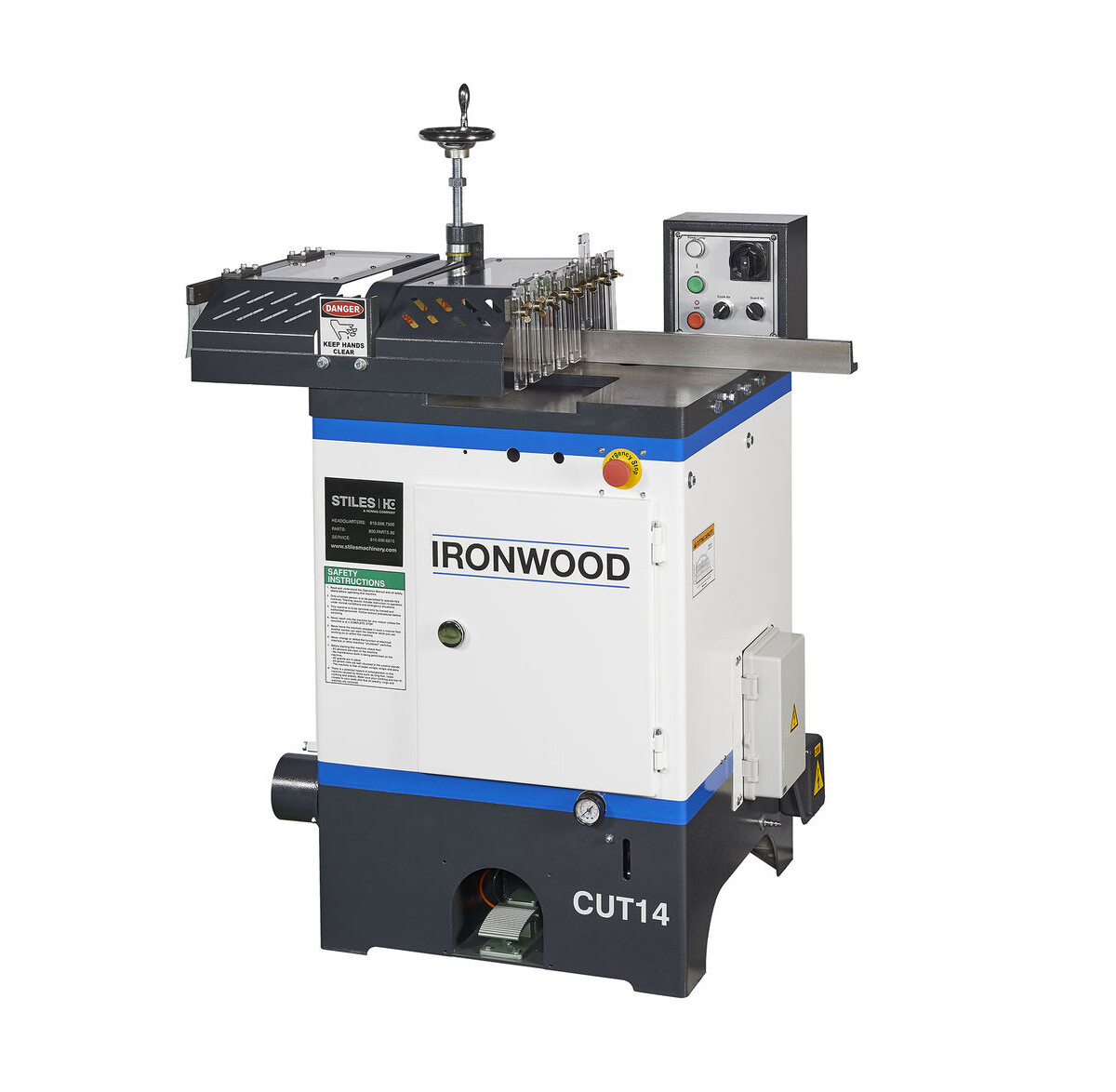

Ironwood CUT14 Upcut Saw

The IRONWOOD CUT14 Cut-off Saw offers operators a safe and reliable, compact crosscutting solution. The table surface of the CUT14 saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

Cutting capacity (thickness x width)	1” x 10”/ 2” x 9” / 3” x 8”
Cycle operation	Pneumatic
Material Feed Direction	RH or LH
Saw blade size	14”
Saw arbor Ø	1”
Saw blade speed	4100 RPM
Table size	23 ¼” x 25”
Working table height	34 ¼”
Motor	5 HP
Dust port Ø / CFM	4” / 450
Air pressure	80-90 PSI
Air consumption	12 CFM at 45 CPM
Gross weight	640 lbs
Packing Dimensions	30" x 34” x 51”
Electrical Connection*	230 Volts \| 3-phase \| 60 Hz.
