Jointer Power Feeder

[tab name='Overview']Co-Matic Jointer Power Feeder - Co-Matic

Built for use on Jointers

The Co-Matic AF012 Jointer Power Feeder is the #1 feeding solution for jointers. Equipped with an 11" wide roller that consists of 312 spring loaded studs, the AF012 can handle heavy-duty workloads and makes jointer feeding quick and effortless.

[tab name='Specs']

• 1/4HP 1 or 3 Phase
• Range of Speeds: (1PH - 4 Speeds)16.5/25/42.5/65.5 FPM, (3PH - 8 Speeds)16.5/25/33/42.5/50/65.5/85.5/131 FPM
• Roller Width: 11"
• Roller Suspension: 312 Spring Loaded Studs with 1/2" Suspension
• Elevation: 6-1/4"
• Thickness Capability: 13/64" - 5"
• Minimum Width: 1"
• Minimum Length: 5"
• Net Weight: 106 lbs

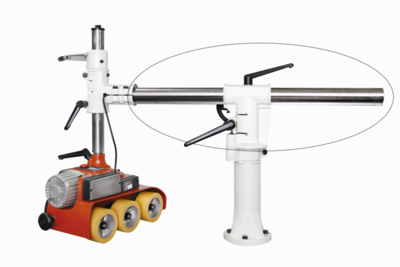

A bracket for the base of the AF012 Jointer Feeder Stand is recommended to mount on the back of your jointer as most jointers don't have a place to mount the stand. Here is a PDF drawing of the bracket we carry which you can add as an option: Bracket Drawing
