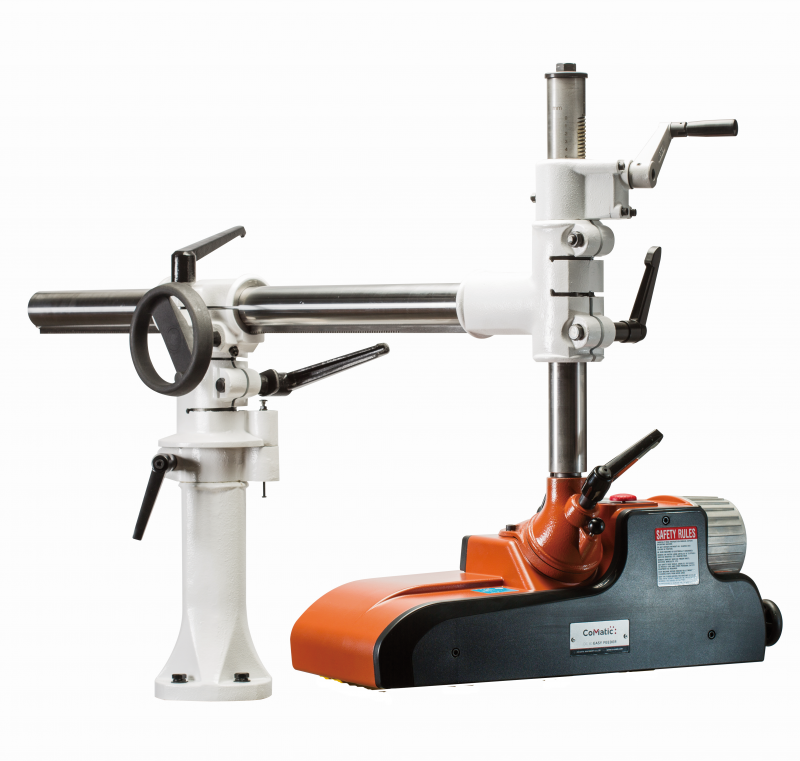

Smart 7 Wheel Variable Speed Power Feeder - Short Stock

Model: DS700
$2,795.00
On Sale
Price $3,365.00 Save 17%
Electrical
Please choose
Add Height Indicator Kit
Please choose
1
Save this product for later
Share this product with your friends
Smart 7 Wheel Variable Speed Power Feeder - Short Stock
Product Details

[tab name='Overview'] Co-Matic DS700 Variable Speed Power Feeder w/Smart Stand - 7 Wheel for Short Stock

The Co-Matic DS700 is the DC70 Variable Speed Feeder with an upgraded Smart Stand. The DS700 has 7 smaller rollers for more surface contact and enable you to feed parts smaller than 8 inches that standard 3 and 4 roll feeders struggle with while still having the capability of feeding all the parts the 3 and 4 wheel feeders can. Equipped with 7 Polyurethane rollers.

The The DS700 Feeder is adjusted up and down from the front so you don't have to walk to the back of the machine. The horizontal arm is 15" longer (42") than standard arms and is always stationary so you always have a high clearance to run taller parts. The memo-locking mechanism of the smart stand also allows you to swing the feeder out and back in to the exact position you were operating at previously.

Special: Add 4 extra grip 50 Durometer GU06 Rollers to a DC70/DS700 Feeder and get 3 Free

What makes the Smart Stand worth it?:

  1. 42" Horizontal Adjustment Arm: This power feeder stand is also built with a longer support column and arm (42 inch horizontal adjustment arm compared to the standard 28 inch arm), making it compatible with larger machinery.
  2. Vertical Adjustment at Front: Standard power feeder stands require vertical adjustment near the base of the stand where the smart stand is vertically adjusted directly above the power feeder, so your operator doesn't have to walk to the back of the machine. This vertical adjustment also makes it so you can pass taller parts up to 20 inches through a feeder without crashing into the horizontal arm of the stand as the horizontal arm is always stationary.
  3. Memo-Locking Feature: When you swing the power feeder out away from machine and bring it back in, the memo-locking mechanism locks the feeder perfectly back into its prior position.
  4. More Durability: The base, joints, and handles of the SS130 Smart Stand are superior to that of the standard universal stands and built for longer wear
  5. Optional Height Indicator: Add the Height Indicator to know exactly how high the rollers are as you raise and lower the feeder

What sets this feeder apart from other feeders?:

1. Capable of Feeding Short-Stock

Feed shorter parts while maintaining secure hold-down due to the shorter distance between the polyurethane rollers from center to center

2. DC Brushless Servo Motor

Experience equivalent torque as 1HP AC motor feeders thanks to a powerful 2/3HP brushless servo motor while saving up to 70% in energy costs.

3. Variable Speed & Digital Controls

No more gear change-out. Easily identify your feed rate and change the speed with the turn of a button at 1 fpm increments until you reach your desired speed from 7-72 fpm

4. Instant 90° Memo-Locking Swivel Adjustment

Swivel the power feeder and lock it in instantly - perpendicular or parallel to the fence with the memo-locking feature not found on standard stock feeders.

[tab name='Specs']

Type 7 Wheel Variable Speed
Horse Power & Rotation (2/3HP) 1-3 Phase, 110-220V; Forward/Reverse
Range of Speeds 7 - 86 FPM
Roller Size ∅60 x 60 mm (∅2.36″ x 2.36″)
Roller Suspension 18 mm (3/4″)
Warranty Period 2 years
Base Bolt Pattern 108 x 90mm Center to Center

Optional Digital Height Indicator Info & Installation Instructions

[tab name='Videos']

Video below is of the Smart Stand included with the DS700 (Video is of DS300)

Video below is of DC70 that doesn't include the Smart Stand

Video below is of Smart Stand included with the DS700

[tab name='Reviews']

"(DC70)Great heavy duty machine that works great (better than the 4 wheel feeders), especially for the small parts we run on our shaper. We have added 2 of these feeders recently to our operation."

Saco Industries, Indiana

"The power feeder has been a great addition to our saw. The additional wheels are great..We considering adding these to the rest of our machines."

Miller Clapperton, Georgia
